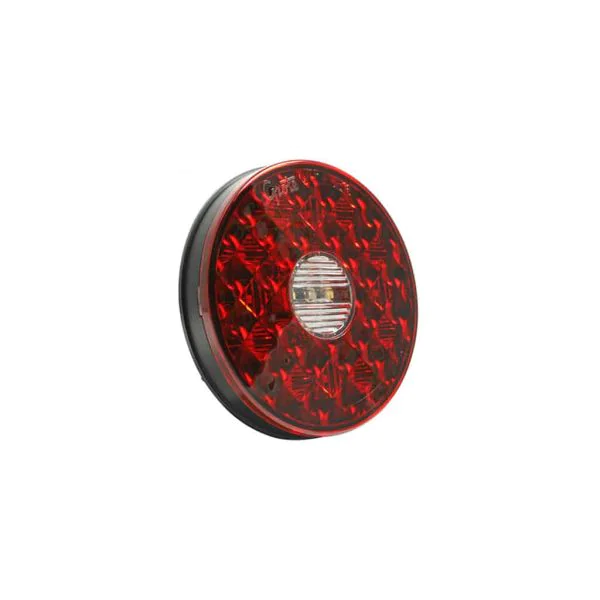

Grote 4" Round LED Stop Tail Turn Lights W/ Integrated Back Up
55162, GRO 55162, Grote Lights, Grote 55162 As The Newest Of Its Kind, The Patented Design Of The Grote 4” Round Led S/T/T With Integrated Backup Lamp Integrates The Functions Of Stop, Tail, Turn And Back-Up Lights Into A Single, Industry-Standard Size Combination Light.
Brand: Grote
Integrated 4-Pin Hard Shell Termination
Features & Benefits:
Innovative Patented Design Combines All Stop Tail Turn And Backup Functions Into One Industry-Standard Size Lamp.
High Compliance Design Using Dedicated LEDS For Stop And Tail Functions.
Assembled In Stainless Steel Flange.
A New Robust Design For Consistent Compliance Utilizing Dedicated LEDS For Stop And Tail.
Matches The Design Of The 55162 Stop Tail Turn With Back-Up.
Provides High Level Electrical Protection For: Reverse Voltage, Over Voltage, Electrical Transients, And Overheating.
Robust Laser Weld Construction.
Designed To Meet Electrical Specifications Of All Major Class 8 Truck Manufacturers.
Provides High Level Electrical Protection For: Reverse Voltage, Over Voltage, Electrical Transients, And Overheating.
Technical Specifications:
Material: Polycarbonate Lens, PC/ABS Housing
Color: Red, Clear
Lens Color: Red/Clear
Housing Color: Black
Voltage: 12V
Amperage: .08A-.31A
Mounting Type: Grommet, Bracket
Connection Type: Hardshell
Size: 4"
Regulations: FMVSS 108
Functions: S, T, I, R(2)
VMRS: 034-002-059
Diameter: 4"
Product Type: Stop Tail Turn
Shape: Round
Part # 55162 TTP Part # GRO 55162 *Please Inquire If You Have Any Questions On Any Product! 1 (800) 374-6488, Or Chat With Us!
